HPM Environment Setup

This page only describes the current LibXR mainline integration boundary on HPM. It does not try to replace the full HPM SDK GUI-based project-creation workflow.

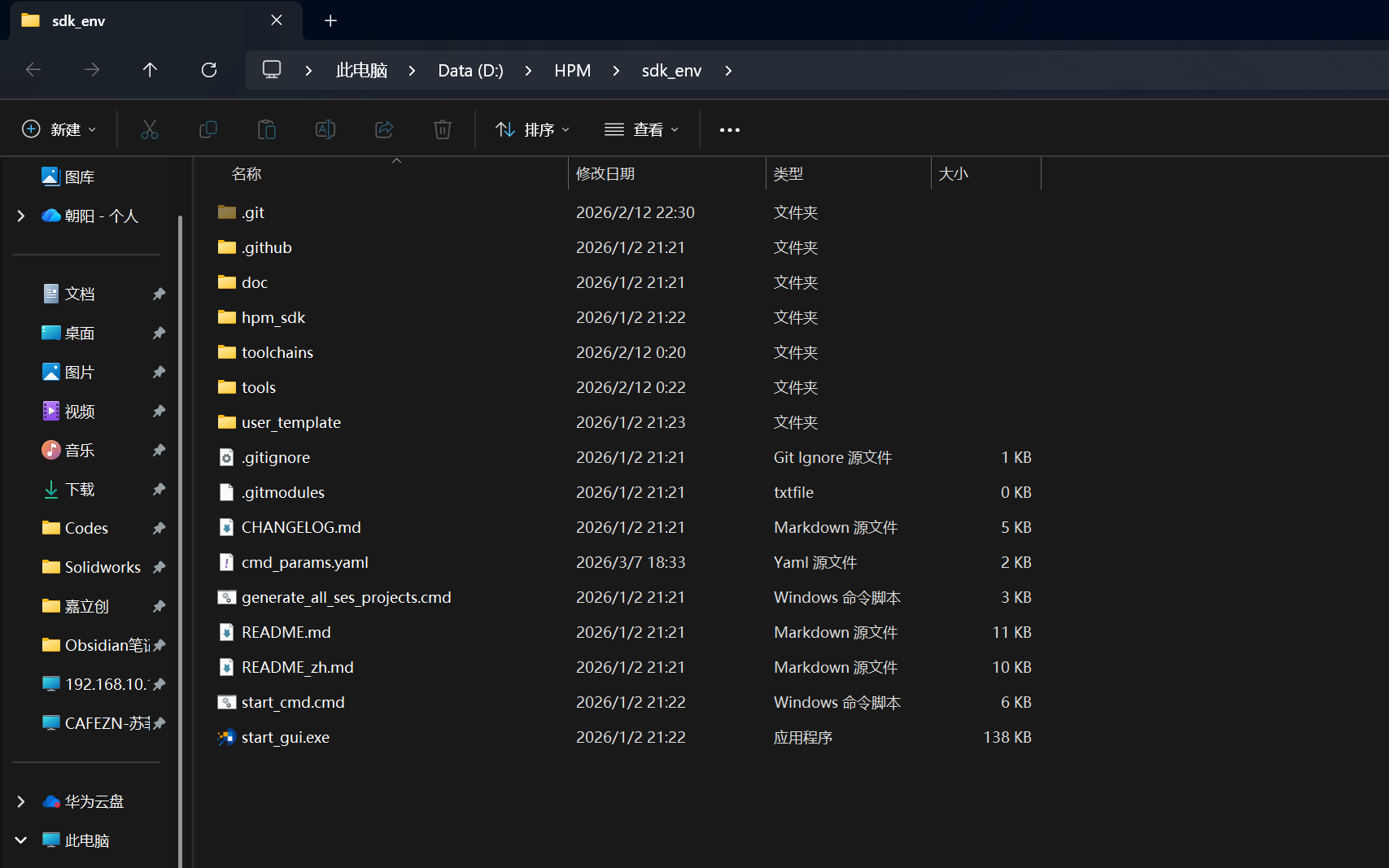

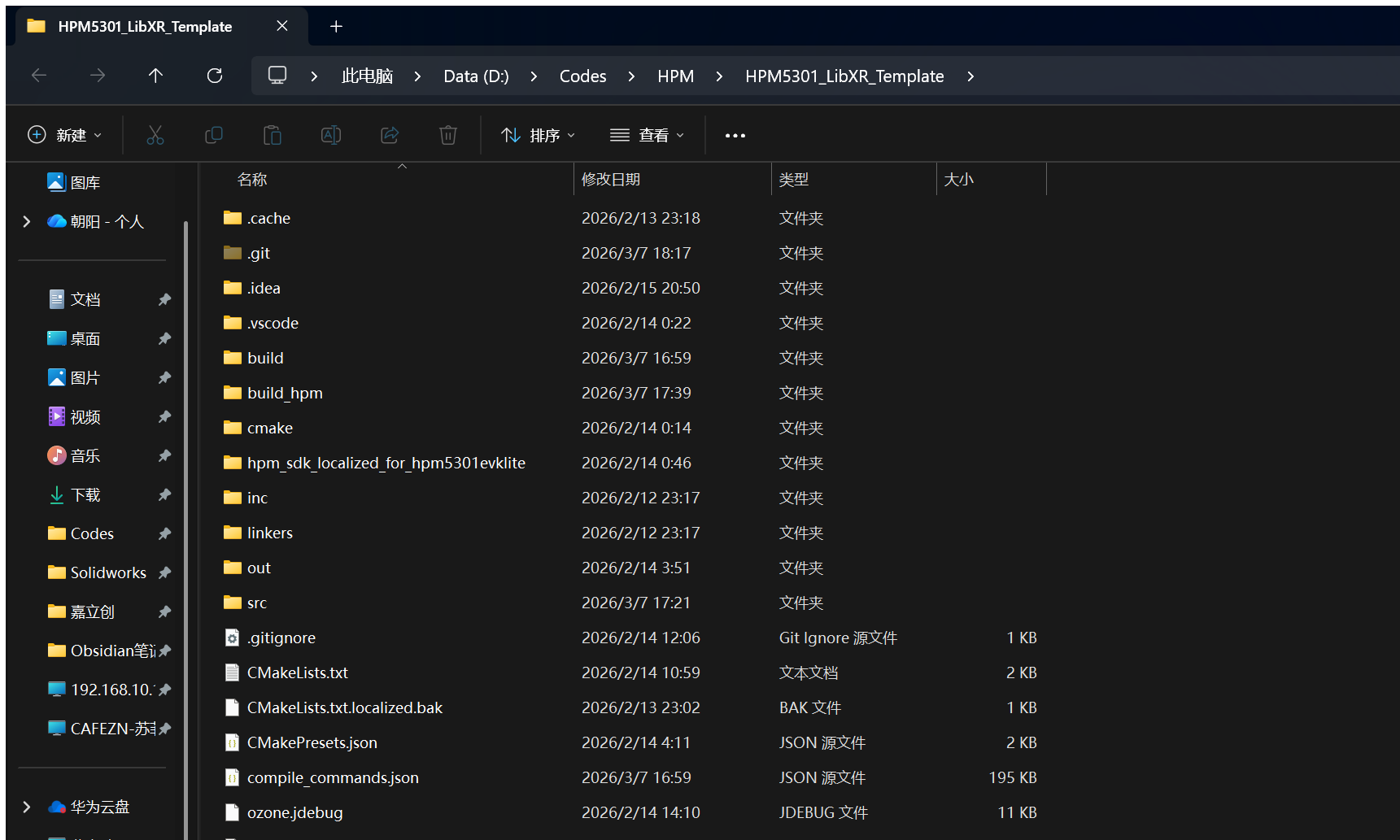

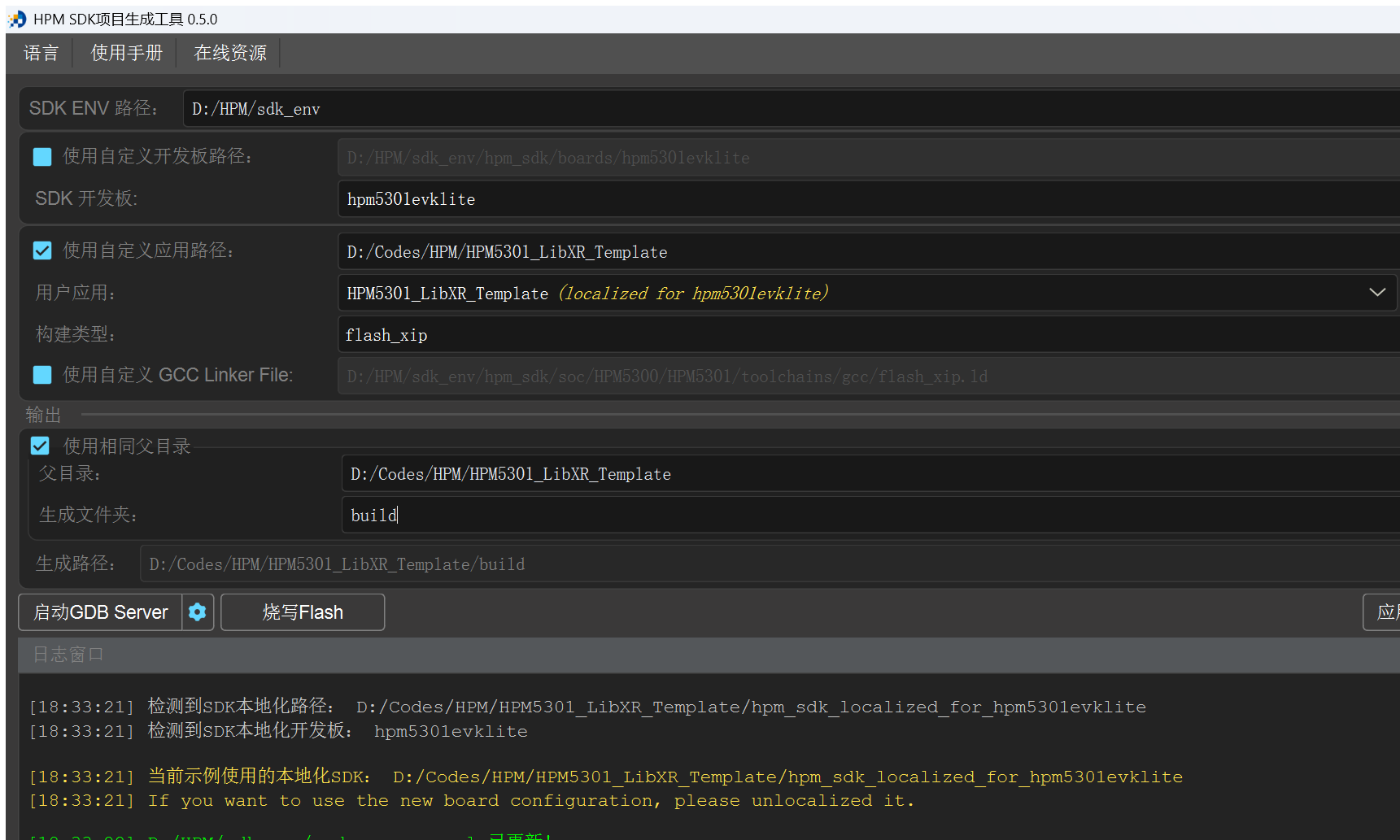

For a practical starting point, refer to the template project first:

What Already Exists in Mainline​

According to the current driver/hpm directory in libxr master, the tree already contains these drivers:

  • hpm_gpio.*
  • hpm_i2c.*
  • hpm_pwm.*
  • hpm_timebase.*

Unlike some other platform pages, this is not a case where files exist in the directory but are still absent from the default build. driver/hpm/CMakeLists.txt pulls them into the build directly.

Basic Integration Model​

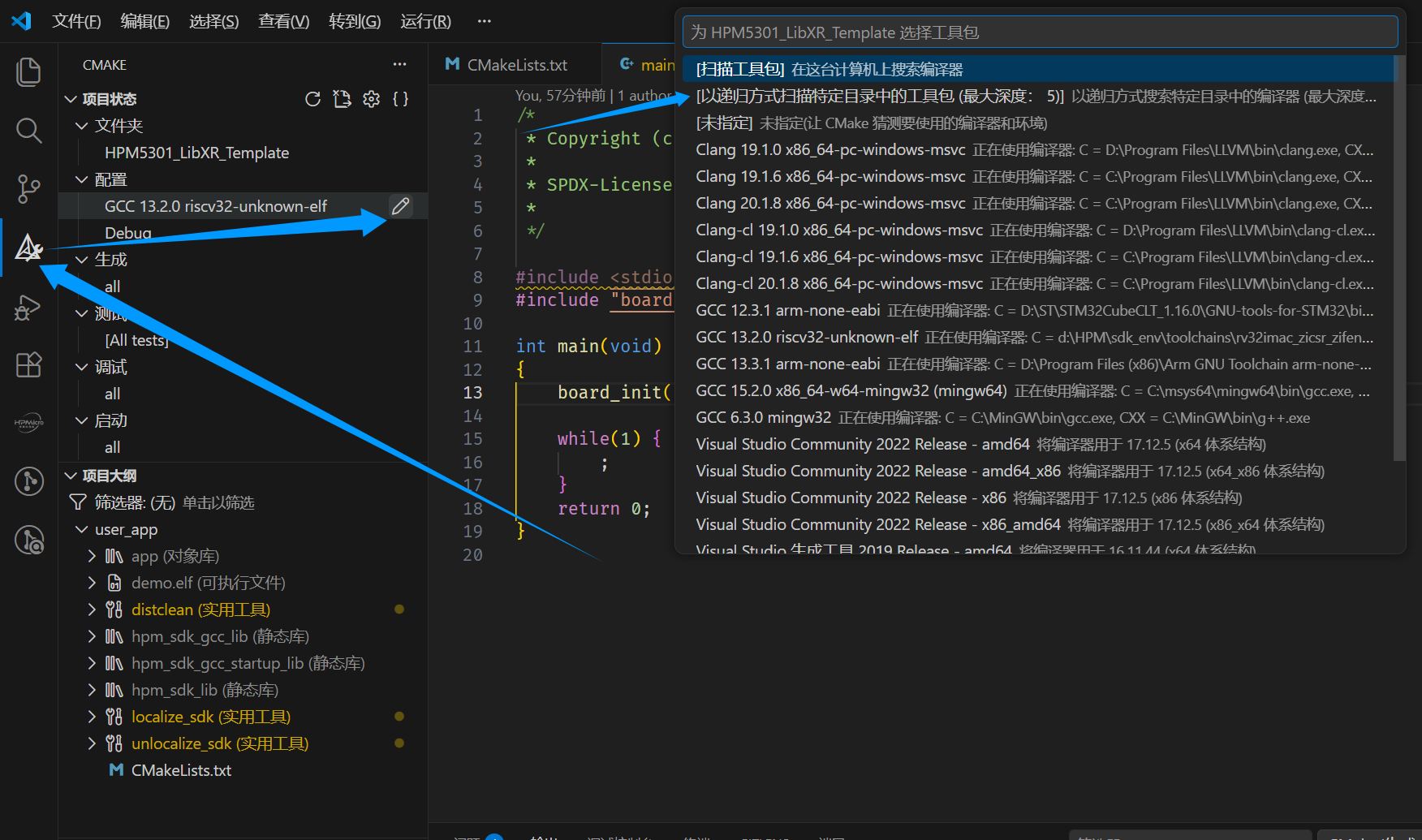

The HPM line still follows the standard “external LibXR project” integration pattern:

set(LIBXR_SYSTEM None)
set(LIBXR_DRIVER hpm)

add_subdirectory(path_to_libxr)

The preconditions are:

  • your project already builds successfully with the HPM SDK
  • the project already wires in HPM SDK headers, startup files, linker scripts, and board initialization
  • LibXR is added on top of that baseline to provide driver/hpm plus the common runtime/middleware layers

LibXR does not replace the HPM SDK project skeleton. It is integrated after the HPM project itself is already valid.

Practical Entry Order​

If you are currently working on an HPM project, a reasonable order is:

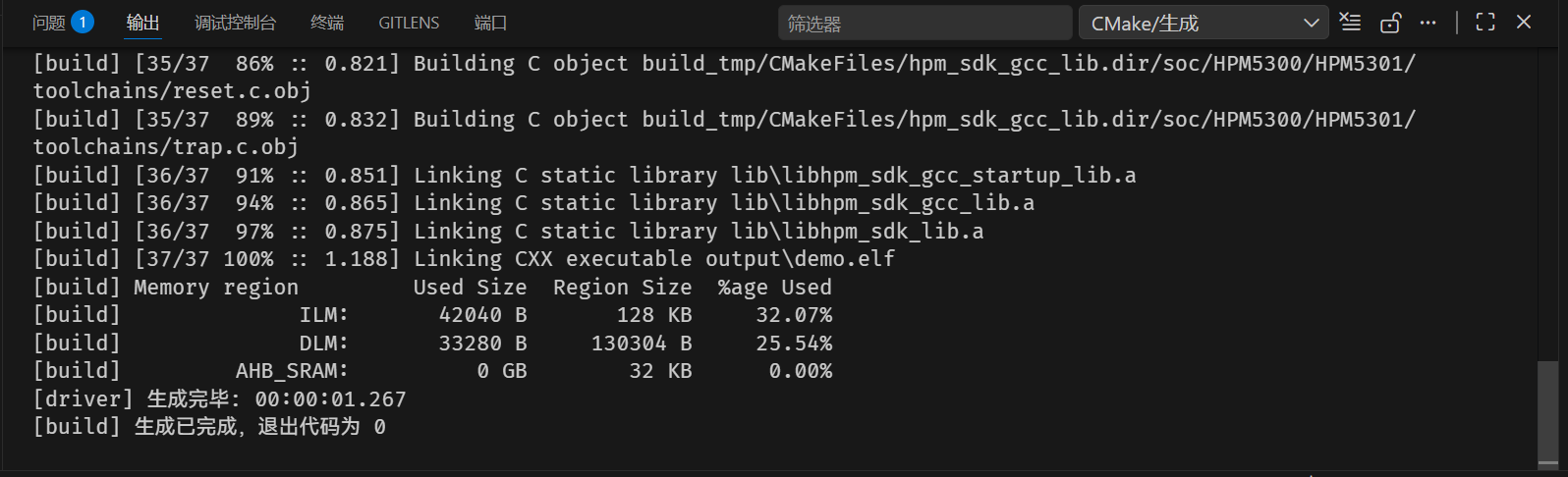

  1. get the minimal HPM SDK or template project running first
  2. verify that the project can already add_subdirectory(libxr) cleanly
  3. then bring in concrete peripherals such as HPMGPIO, HPMI2C, HPMPWM, or HPMTimebase

Current Boundary of I2C​

The current HPM I2C line is no longer just a simple blocking wrapper. According to the current headers, HPMI2C already covers:

  • 7-bit / 10-bit master addressing modes
  • sequence frames
  • transfer flags
  • optional DMA-helper background paths
  • wait policies and recovery logic

Whether all of that is directly usable in your concrete project still depends on:

  • whether the HPM SDK headers are complete
  • whether matching DMA / interrupt helpers are present
  • whether the target board’s clocks, pin setup, and bus-recovery path have been validated

So this page documents “capability that exists in mainline code,” not “feature guaranteed to be fully validated for every HPM project by default.”

Current Boundary of PWM​

HPMPWM currently supports two paths in mainline:

  • if the SoC provides a standard PWM peripheral, it uses hpm_pwm_drv
  • otherwise the code still has a GPTMR fallback path

That means the docs should not pretend there is only one fixed HPM PWM implementation. The actual path depends on your chip and the SDK macro conditions.

What This Page Does Not Try to Cover​

This page does not attempt to replace:

  • HPM SDK installation or environment-variable tutorials
  • graphical project-creation steps
  • board clock/pin wizard screenshots
  • full IDE or GUI operator manuals from the HPM SDK side

If those steps later become tightly coupled with LibXR integration and stabilize inside a template repository, they can be documented there separately.
