UART Performance Testing

One common question often asked about this framework is: "Will LibXR's abstraction over low-level drivers cause significant performance loss?"

The answer is: there's absolutely no need to worry. While using LibXR instead of vendor SDKs (e.g., HAL, ESP-IDF) and managing DMA directly may result in slight overhead, this loss is minimal and can be safely ignored. The following sections include test results for your own analysis.

Test Environment

The UART driver is one of the most complex parts of LibXR. The testing environment is as follows:

STM32F103C8, Cortex-M3 @ 72MHz
CH32V307VC, RISC-V @ 144MHz
STM32F407IG, Cortex-M4 @ 168MHz
In Debug mode, only user code is compiled with -Og optimization; HAL, FreeRTOS, USB, and other libraries use -O2. In Release mode, all are optimized with -O3.
The TX and RX pins of USART1 are connected with jumper wires; data bits: 8, stop bit: 1, no flow control, no parity.
After receiving data, each entire packet is checked with CRC. Every second, the number of successful transmissions, failed transmissions, and total CRC errors is counted.

Test Code

Synchronous transmission and reception each use a separate thread. Although context switching introduces some performance overhead, the impact is minimal. For maximum performance, asynchronous transmission and reception can be used.

  constexpr size_t BUFFER_SIZE = 32;
  constexpr size_t BAUDRATE = 2000000;

  static uint8_t read_buffer[BUFFER_SIZE], write_buffer[BUFFER_SIZE];
  static uint32_t count_read = 0, count_write = 0, count_error = 0;

  for (uint32_t i = 0; i < sizeof(write_buffer); i++) {
    write_buffer[i] = i;
  }

  STDIO::write_ = uart_cdc.write_port_;

  void (*fun)(void *) = [](void *) {
    LibXR::STDIO::Printf("read count: %d, write count: %d, error count: %d\r\n",
                         count_read, count_write, count_error);
    LibXR::STDIO::Printf("speed: %d BAUD\r\n",
                         count_read * 10 * sizeof(write_buffer));
    count_read = 0;
    count_write = 0;
  };

  auto print_task =
      LibXR::Timer::CreateTask(fun, reinterpret_cast<void *>(0), 1000);
  LibXR::Timer::Add(print_task);
  LibXR::Timer::Start(print_task);

  void (*thread_read)(LibXR::UART *) = [](LibXR::UART *uart) {
    LibXR::Semaphore sem(0);
    LibXR::ReadOperation op(sem);
    while (true) {
      uart->Read(read_buffer, op);
      if (LibXR::CRC8::Verify(read_buffer, sizeof(read_buffer))) {
        count_read++;
      } else {
        count_error++;
      }
    }
  };

  void (*thread_write)(LibXR::UART *) = [](LibXR::UART *uart) {
    LibXR::Semaphore sem(1);
    LibXR::WriteOperation op(sem);

    uart->SetConfig({BAUDRATE, LibXR::UART::Parity::NO_PARITY, 8, 1});

    while (true) {
      write_buffer[0]++;
      write_buffer[sizeof(write_buffer) - 1] = LibXR::CRC8::Calculate(
          write_buffer, sizeof(write_buffer) - sizeof(uint8_t));

      uart->Write(write_buffer, op);
      count_write++;
    }
  };

  LibXR::Thread read_thread, write_thread;

  read_thread.Create(reinterpret_cast<LibXR::UART *>(&usart1), thread_read,
                     "read_thread", 2048,
                     static_cast<LibXR::Thread::Priority>(4));

  write_thread.Create(reinterpret_cast<LibXR::UART *>(&usart1), thread_write,
                      "write_thread", 2048,
                      static_cast<LibXR::Thread::Priority>(3));

  while (true) {
    LibXR::Thread::Sleep(UINT32_MAX);
  }

Speed Test Results

STM32F1, -Og, 32-byte packets, 2M baud

32 bytes is close to the actual size of a typical UART data packet. At a baud rate of 2 Mbps, this configuration can approach the theoretical maximum throughput of the serial port.

read count: 6000, write count: 5999, error count: 0
speed: 1920000 BAUD
read count: 6000, write count: 6000, error count: 0
speed: 1920000 BAUD
read count: 5999, write count: 6000, error count: 0
speed: 1919680 BAUD
read count: 6000, write count: 5999, error count: 0
speed: 1920000 BAUD
read count: 6000, write count: 6000, error count: 0
speed: 1920000 BAUD
read count: 5999, write count: 6000, error count: 0
speed: 1919680 BAUD

STM32F1, -O3, 32-byte packets, 2M baud

There is no significant difference under O3 optimization.

read count: 6000, write count: 5999, error count: 0
speed: 1920000 BAUD
read count: 5999, write count: 6000, error count: 0
speed: 1919680 BAUD
read count: 6000, write count: 6000, error count: 0
speed: 1920000 BAUD
read count: 6000, write count: 5999, error count: 0
speed: 1920000 BAUD
read count: 5999, write count: 6000, error count: 0
speed: 1919680 BAUD
read count: 6000, write count: 6000, error count: 0
speed: 1920000 BAUD

STM32F1, -Og, 128-byte packets, 4M baud

Larger data packets and higher baud rate.

read count: 3061, write count: 3061, error count: 0
speed: 3918080 BAUD
read count: 3062, write count: 3062, error count: 0
speed: 3919360 BAUD
read count: 3062, write count: 3062, error count: 0
speed: 3919360 BAUD
read count: 3061, write count: 3061, error count: 0
speed: 3918080 BAUD
read count: 3062, write count: 3062, error count: 0
speed: 3919360 BAUD
read count: 3063, write count: 3062, error count: 0
speed: 3920640 BAUD

CH32V307, -Og, 64-byte packets, 9M baud

At a baud rate of 9 Mbps, the theoretical maximum throughput can still be achieved.

read count: 14000, write count: 14000, error count: 0
speed: 8960000 BAUD
read count: 14000, write count: 14000, error count: 0
speed: 8960000 BAUD
read count: 14000, write count: 14000, error count: 0
speed: 8960000 BAUD
read count: 14000, write count: 14000, error count: 0
speed: 8960000 BAUD
read count: 14000, write count: 14000, error count: 0
speed: 8960000 BAUD
read count: 14000, write count: 14000, error count: 0
speed: 8960000 BAUD

System Call Analysis

When the speed is already near the theoretical maximum, further benchmarking becomes meaningless. Here, STM32F4 and SystemView are used to visualize the system calls during transmission and reception. The transmission and reception processes themselves are completely lock-free; all system calls are related only to the semaphores required for thread wakeup and synchronization.

Lower Baud Rates

At lower baud rates, multiple packets are concatenated together, making it impossible to trigger the IDLE interrupt. The write thread is periodically woken up, while the read thread is woken up only when the buffer is half or fully filled by an interrupt.

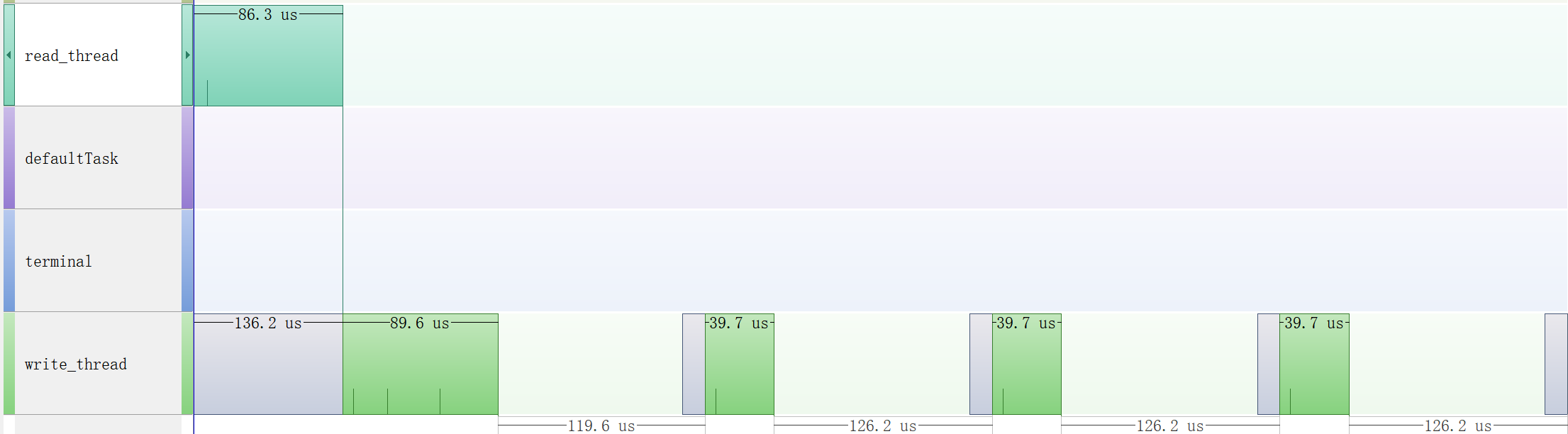

Low Speed

Higher Baud Rates

At higher baud rates, the transmit and receive threads are alternately woken up.

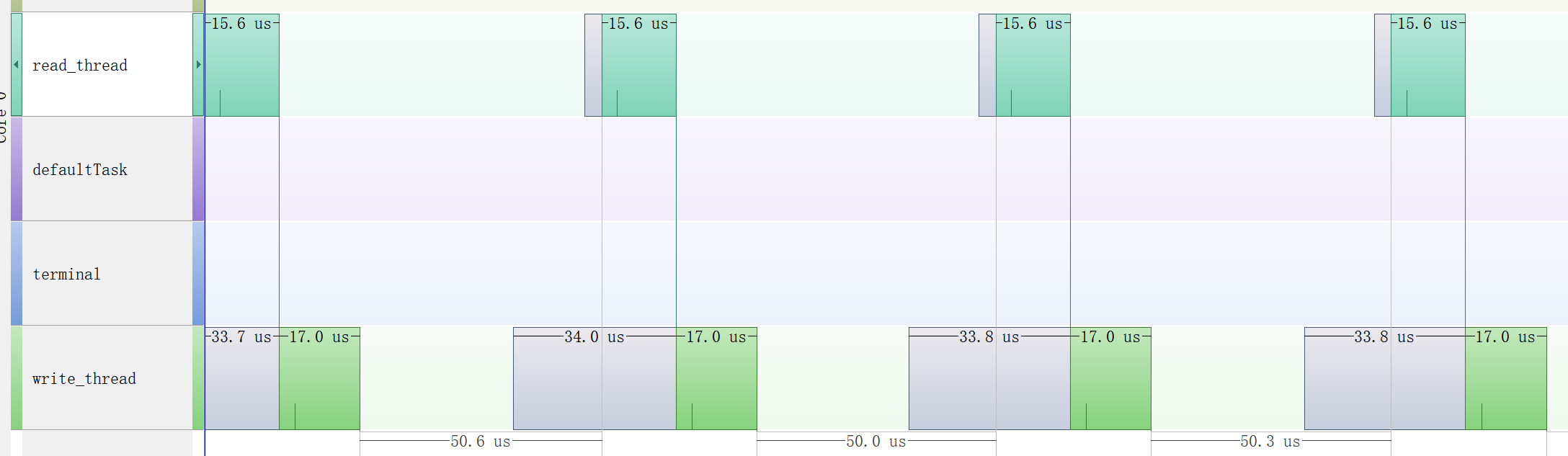

High Speed

Summary

After abstracting low-level UART drivers, LibXR introduces minimal performance overhead. On the STM32F103 (72MHz, no FPU or Cache), it achieves up to ~4 Mbps real throughput with 0 errors, even under multithreaded FreeRTOS conditions. This demonstrates that the framework maintains high efficiency and reliability, even on resource-constrained MCUs—suitable for real-time and high-bandwidth embedded applications.
